B3740S 直流无刷电机
- 所属分类:[全部利来w66直流无刷电机]
- 产品简介:特征:单转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时
- 订购热线:400-0755-631
- 下载资料:资料下载
|
B3740S |
Outer Rotor |
Output Power 输出功率: 10W~50W |
Weight 重量: 170g (Approx.) |
外转子 |
||||
Brushless DC Motor-Typical Application 直流无刷电机-典型应用 Rehabilitation Apparatus: Fascia Gun, Massager 康复设备:筋膜枪,按摩器 Industry & Business Equipment: Pumps, Valves, Fan, Linear Direct Drive 工商业设备:泵,阀,风机,线性直驱 Others: Micro Direct Drive PTZ(pan-tilt-zoom) 其它:小型直驱云台 |
Model 型号 |
Voltage(V) 电压 |
No Load 空载 |
Rated Load 额定负载 |
Stall 堵转 |
||||||
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
B3740S-S01 |
8-26 |
12 |
3667 |
0.42 |
90 |
3035 |
2.85 |
28.6 |
522 |
4.5 |
B3740S-S02 |
8-26 |
21 |
3304 |
0.18 |
90 |
2724 |
1.69 |
25.7 |
513 |
4.5 |
Characteristic: CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs 特征:单转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。 |

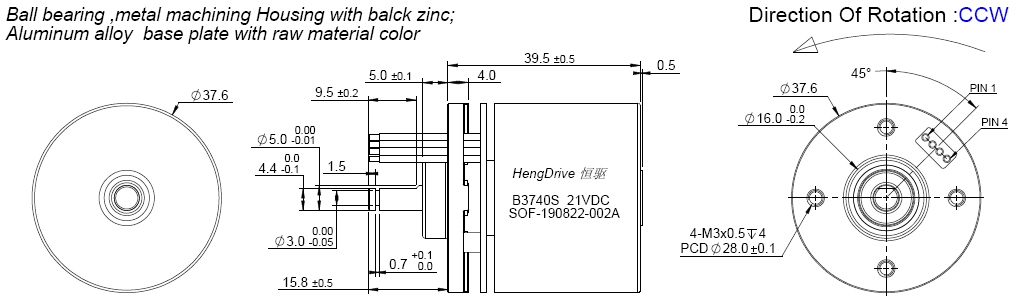

Outline Drawing 外形图:
Unit: Millimeter
Performance Curve 性能曲线:

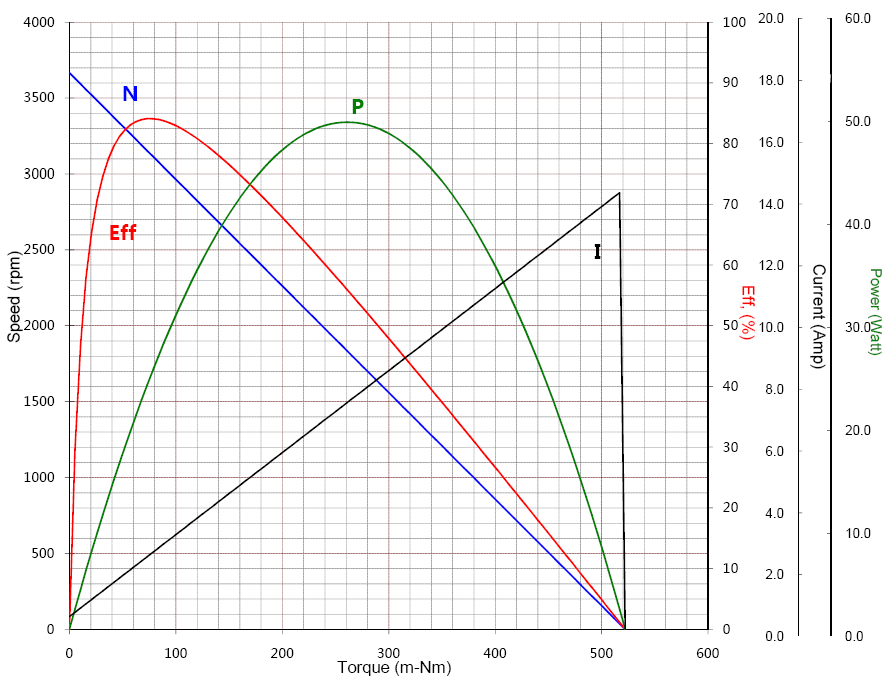

B3740S-S01 12V |

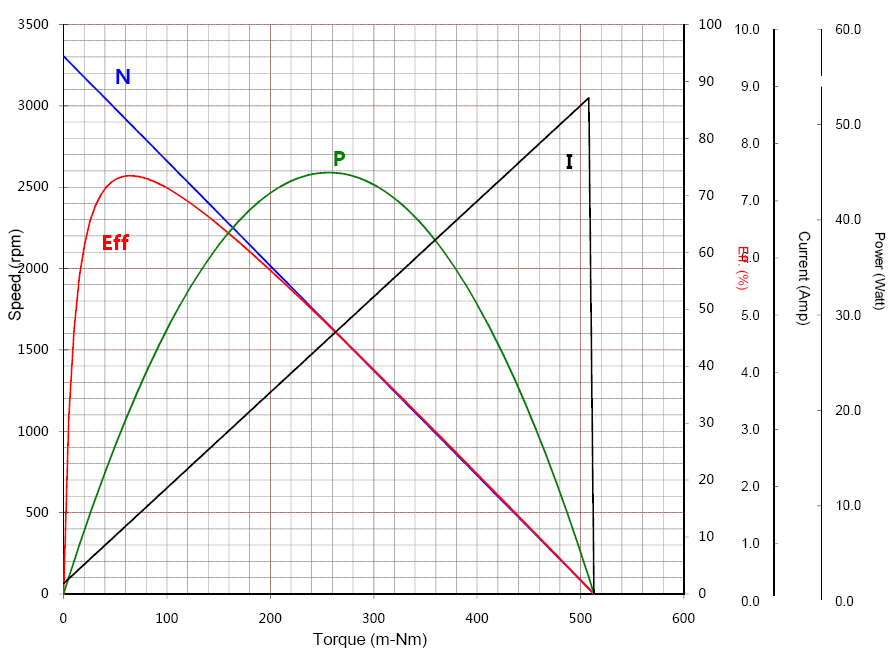

B3740S-S02 21V |
